Mustang mystery wiring

 Post Reply Post Reply
Author
NeilMcG View Drop Down
Groupie
Groupie


Joined: September-20-2021
Location: Pittsburgh, PA
Status: Offline
Points: 97
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeilMcG Quote  Post ReplyReply Direct Link To This Post Topic: Mustang mystery wiring
    Posted: October-06-2022 at 7:29am
I'm helping a friend in the UK with his early 80s Mustang 16.

In the back next to the solenoid, there is a part that looks just a multi pin connector, however it also has spade terminals and a fuse.
It could just been a muti-wire connector with spades along with pins, but no one's sure.
Anyone know what this is?







Back to Top
KENO View Drop Down
Grand Poobah
Grand Poobah


Joined: June-06-2004
Location: United States
Status: Offline
Points: 9780
Post Options Post Options   Thanks (0) Thanks(0)   Quote KENO Quote  Post ReplyReply Direct Link To This Post Posted: October-06-2022 at 7:46am

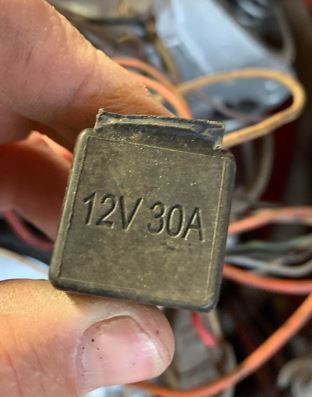

It's commonly called a Bosch relay.

The one in the picture is rated for a max of 30 amps.

Google "Bosch relay" and there will be plenty of info on what the terminals are for.

85 and 86 are power to the coil and ground for the coil.

30 and 87 are power into the relay and power out of the relay.

There are several different ways to wire the relay, but what's mentioned above is "typical"

It probably got added sometime in the last 40 something years..........or in other words, it wasn't part of the original wiring.Wink

PS ............early 80's and Mustang 16 just don't go together

Back to Top
NeilMcG View Drop Down
Groupie
Groupie


Joined: September-20-2021
Location: Pittsburgh, PA
Status: Offline
Points: 97
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeilMcG Quote  Post ReplyReply Direct Link To This Post Posted: October-06-2022 at 8:14am
Originally posted by NeilMcG NeilMcG wrote:


I'm helping a friend in the UK with his early 80s Mustang 16.

In the back next to the solenoid, there is a part that looks just a multi pin connector, however it also has spade terminals and a fuse.
It could just been a muti-wire connector with spades along with pins, but no one's sure.
Anyone know what this is?









Ken, you never cease to amaze me with your wealth of knowledge.
Yeah it's an '82 I think. That's why it ended up in England lol
Back to Top
Mille1sj View Drop Down
Senior Member
Senior Member
Avatar

Joined: October-01-2007
Location: United States
Status: Offline
Points: 273
Post Options Post Options   Thanks (0) Thanks(0)   Quote Mille1sj Quote  Post ReplyReply Direct Link To This Post Posted: October-13-2022 at 9:59pm
I agree, Ken has been a great resource for me on many occasions as well as many others on this site. They always manage to explain wiring in a a way that even us mechanical folks can understand.
