'78 pcm 351 front view pic anyone?

 Post Reply Post Reply
Author
NeilMcG View Drop Down
Groupie
Groupie


Joined: September-20-2021
Location: Pittsburgh, PA
Status: Offline
Points: 62
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeilMcG Quote  Post ReplyReply Direct Link To This Post Topic: '78 pcm 351 front view pic anyone?
    Posted: June-23-2022 at 2:47pm
I'm putting the ole 78 back together and as Murphy's would have it, I'm unable to find the one picture i need to put the hoses and rwp back on correctly.
If you have a front looking picture or even a diagram of the water path, it'd be a big help.
Thank you!
Back to Top
KENO View Drop Down
Grand Poobah
Grand Poobah


Joined: June-06-2004
Location: United States
Status: Offline
Points: 9324
Post Options Post Options   Thanks (0) Thanks(0)   Quote KENO Quote  Post ReplyReply Direct Link To This Post Posted: June-23-2022 at 5:44pm

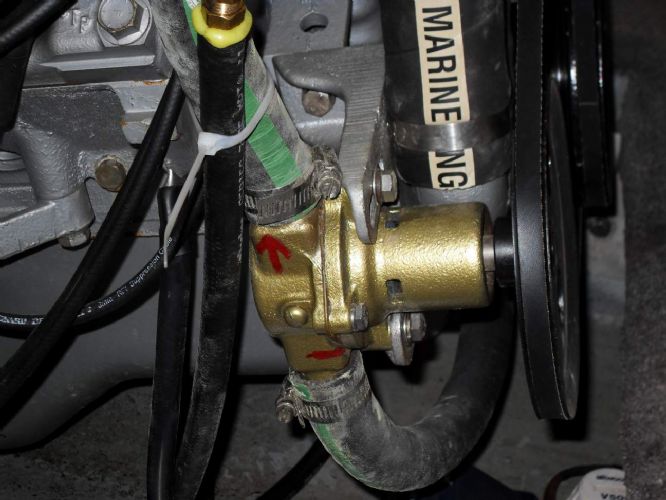

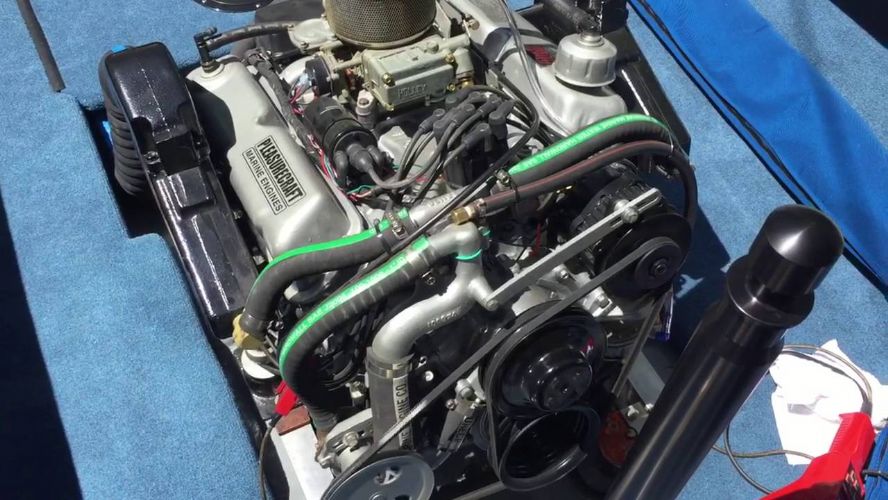

Here are a couple of pictures Wink





For your Reverse Rotation engine the screw head on the pump a little below the red arrow should be facing outboard like in the second picture

Back to Top
NeilMcG View Drop Down
Groupie
Groupie


Joined: September-20-2021
Location: Pittsburgh, PA
Status: Offline
Points: 62
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeilMcG Quote  Post ReplyReply Direct Link To This Post Posted: June-23-2022 at 7:07pm
Thank you!
Back to Top
NeilMcG View Drop Down
Groupie
Groupie


Joined: September-20-2021
Location: Pittsburgh, PA
Status: Offline
Points: 62
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeilMcG Quote  Post ReplyReply Direct Link To This Post Posted: July-01-2022 at 5:13pm
What size hose is needed for the lower t-stat housing to the RWP?

Back to Top
KENO View Drop Down
Grand Poobah
Grand Poobah


Joined: June-06-2004
Location: United States
Status: Offline
Points: 9324
Post Options Post Options   Thanks (0) Thanks(0)   Quote KENO Quote  Post ReplyReply Direct Link To This Post Posted: July-01-2022 at 6:13pm
I think you mean from the lower t stat housing to the circulating pump Wink

It's 1 3/4 inch ID and a foot will take care of you.

A short piece about 2 1/2 inches or so between the circulating pump and the j tube and a longer piece from the j tube to the lower housing.

The longer piece is around 6 inches long
Back to Top
NeilMcG View Drop Down
Groupie
Groupie


Joined: September-20-2021
Location: Pittsburgh, PA
Status: Offline
Points: 62
Post Options Post Options   Thanks (0) Thanks(0)   Quote NeilMcG Quote  Post ReplyReply Direct Link To This Post Posted: July-01-2022 at 6:22pm
Oh yeah...that's indeed what I meant.

Thank you!!


Back to Top
